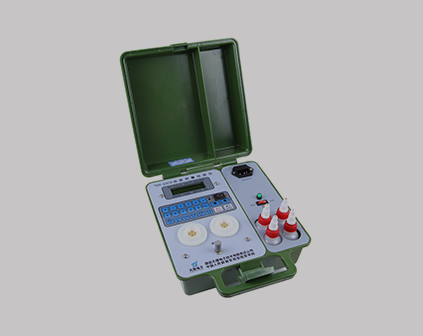

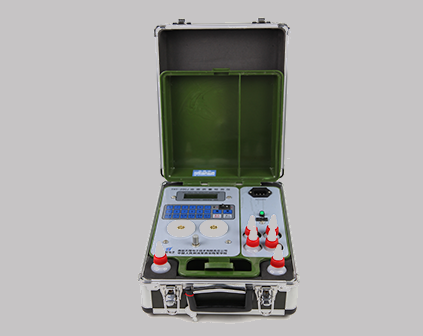

THY-20C Series Lubricant Oil Quality Analyzer
Name：Lubricant Oil Quality Analyzer
Brand：TH
Model：THY-20CD/CJ
Functional Characteristics
◆ This instrument delivers comprehensive oil contamination analysis in just 3 minutes, precisely pinpointing moisture content. It effectively identifies metal particles exceeding 60 microns and accurately determines if newly purchased oils meet standards, while also detecting light oil contamination within lubricants. Featuring an extensive built-in database containing reference values for over 300 oil types, along with a rechargeable battery, it enables convenient on-site operation.
Product Introduction
I. Product Introduction
The THY series oil quality detector produced by Xi 'an Tianhou Electronic Technology Co., Ltd. is a rapid detection instrument independently developed by the company for quality analysis of industrial lubricating oil.
Its working principle is to compare new oil with contaminated oil, and determine the degree of contamination of the oil product by comprehensively considering the change in dielectric constant, thereby determining whether the oil product is qualified.
The THY-20C series of oil quality detectors mainly include the THY-20CD and THY-20CJ models.
This instrument is equipped with a liquid crystal screen display, allowing for intuitive reading of various data. The instrument adopts A high-precision A/D conversion circuit, which makes the instrument have better repeatability. This instrument has both AC and DC dual-purpose functions (DC can work continuously for 28 hours). It can be charged when the AC power supply is working. The product is suitable for use in laboratories, lubrication sites and foreign markets.
Ⅱ.Product Advantages
◆ Data Storage
It has a large database with reference values for the scrapping of over three hundred types of oil products.
◆ Data display
The LCD screen display allows for self-adjustment of the backlight. It features a numeric keypad for convenient operation.
◆ Large battery capacity
The DC can operate continuously for 28 hours and has a long standby time.
Technical Parameter
◆ Measuring range: ±99.9
◆ Moisture measurement range: 0.1-100%
◆ Repeat error: ≤±3%
◆ Dimensions: 285x220x115mm
◆ Ambient temperature: -20 to +55℃
◆ Whole machine power: ≤5W
◆ Input voltage: AC220V±10%
◆ Whole machine weight: 4.5kg
Application scenarios
The THY series of oil quality detectors have been widely applied in fields such as aerospace, oil fields, ports, transportation, mining, power, metallurgy, chemical engineering, pharmaceuticals, and construction machinery.
It has become the main means of "lubrication management" testing in major oil fields of China National Petroleum Corporation and China Petroleum & Chemical Corporation. The reliability of the data and the stability of the equipment have been unanimously recognized by oil field users. And with the expansion of oilfield business in recent years, the instruments have been exported to overseas markets.
