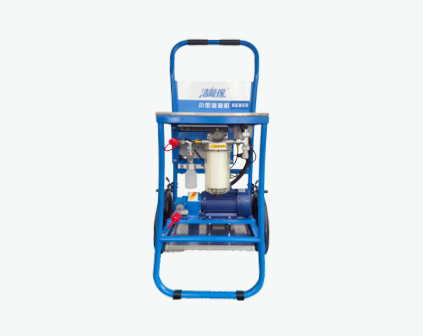

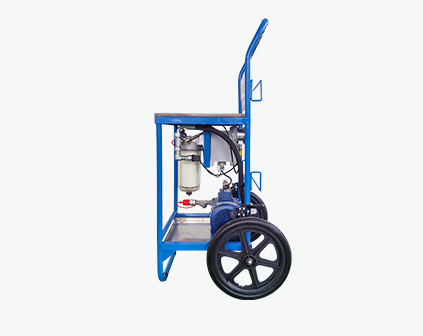

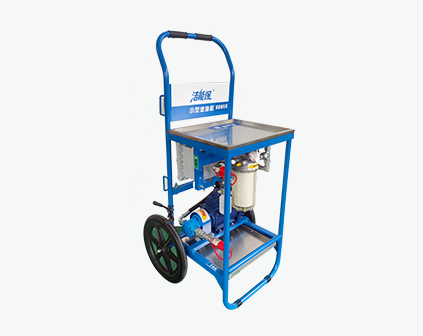

Name：Industrial Oil In Vitro Purification Device
Brand：JANENOPE
Model：TH-TWGB-02
◆ Filtered oil can be upgraded by 2 to 3 NAS levels.
◆ Oil-water separation efficiency is more than 95%.
◆ Cyclic filtration removes impurities and water accumulated in the sump of the oil tank.
◆ Fully sealed system to prevent secondary pollution of oil.
◆ Explosion-proof qualification, safe and reliable.
Industrial oil in vitro purification device is Tianhou company through the design innovation, structural innovation, material innovation, solved the traditional filtration technology ‘filtration accuracy, circulation resistance, dirt holding capacity, oil and water separation, volume size’ between the incompatible contradictions, truly complete the depth of oil purification filtration, the performance indexes of the revolutionary enhancement. The performance indexes have been revolutionally improved.
Product Usage
The oil filter is suitable for the oil purification of the hydraulic system and lubrication system in various industries, and can realize the oil filtration and new oil filling under the condition of the equipment.
Technical Features
Adhering to the design concept of safety, energy saving and environmental protection, the products have the advantages of high filtration accuracy, wide range of application, compact structure, small volume, light weight, reliable operation, simple operation and so on. This model is suitable for explosion-proof area.
Overall dimensions: long 675 wide 620 height 1200
Rated power: 1.1KW
Power supply voltage: AC 110V 60Hz
Rated flow rate: 10L / min
Filter accuracy: 5μm
Viscosity of filtration medium: 200mm² / S
Temperature of the working environment: -20℃ ~40℃
Explosion-proof grade: Ex db ib II B T4 GB
Product weight: 58kg
Filter element type: J1223
It is mainly suitable for deep bypass purification of oil used in lubrication, hydraulic, hydrostatic and other systems.
